New Arrival Nylon Coated Double Loop Wire for Calendar & Notebook Spool Packing

Availability:

Quantity:



Inquire Add to Basket

Model:
Double Loop Wire - Spool-Packed
Brand:
Quanpaiqi

Double Loop Binding Wire O Nylon Coated Binding Wire O Twin Ring Wire O double loop wire o double loop wire

Product Description

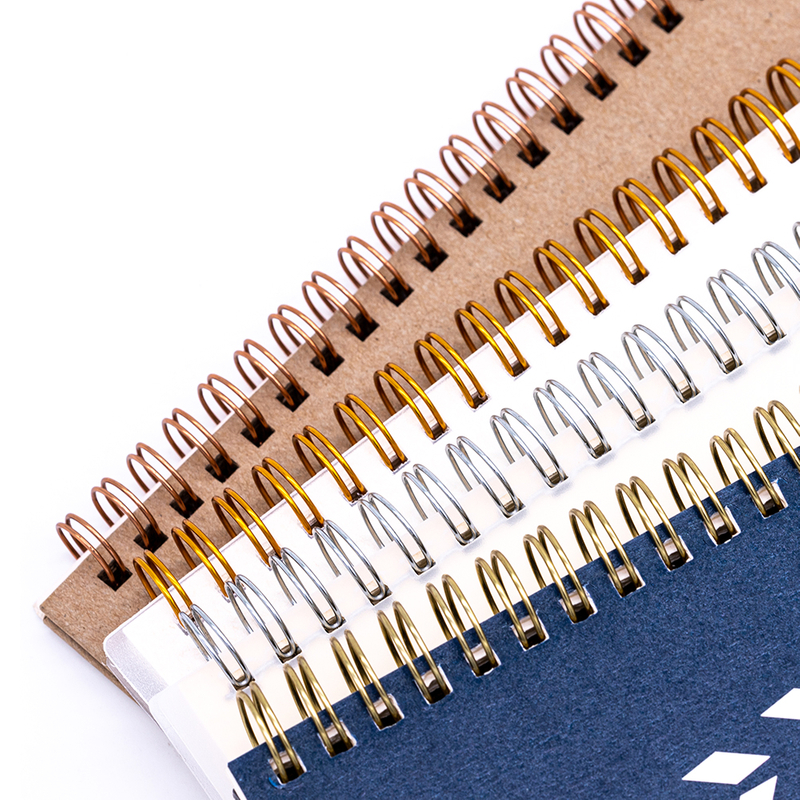

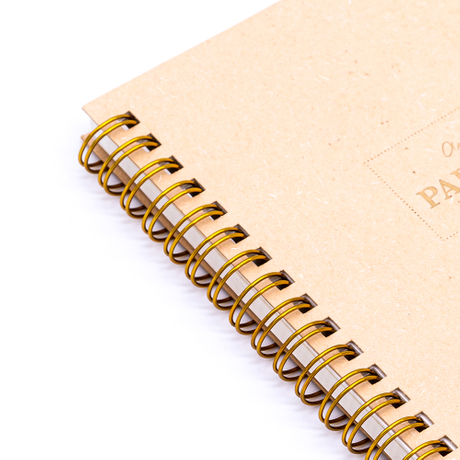

The Double Loop Binding Wire is made of nylon/PET coated wire. The outer nylon/PET material has bright color and uniform thickness. The steel part in wire is hard and not easily deformed. Our company's Double Loop Binding Wire product has excellent quality and strong durability. Our product can be customized according to customer demand specifications (color and length). In addition to the normal Pantone colors, our company also has electroplating colors to choose from, so we have more color options. Besides, we have Safety Coil Technology that helps us protect our hands, which is Child-Friendly.

Size	3/16"~1-1/2"
Pitch	3:1/2:1
Wire Diameter	0.65~1.5mm
Color	All Pantone Color is Available
Length	Customized A3 A4 A5 A7 B5……

Product Parameters

Pitch	Size		Wire Diameter (mm)
Pitch	Inches	MM	Wire Diameter (mm)
3:1	3/16"	4.8	0.70
	1/4"	6.4	0.70
	5/16"	7.9	0.75
	3/8"	9.5	0.80
	7/16"	11.0	0.85
	1/2"	12.7	0.90
	9/16"	14.3	0.95
	5/8"	16.0	1.00
	3/4"	19.0	1.10
2:1	5/16"	7.0	0.75
	3/8"	9.5	0.80
	7/16"	11.0	0.85
	1/2"	12.7	0.90
	9/16"	14.3	0.95
	5/8"	16.0	1.00
	3/4"	19.0	1.10
	7/8"	22.2	1.20
	1/1"	25.4	1.25
	1-1/8"	28.5	1.35
	1-1/4"	31.8	1.40
	1-7/16"	36.5	1.40
	1-1/2"	38.1	1.50

Packing Details

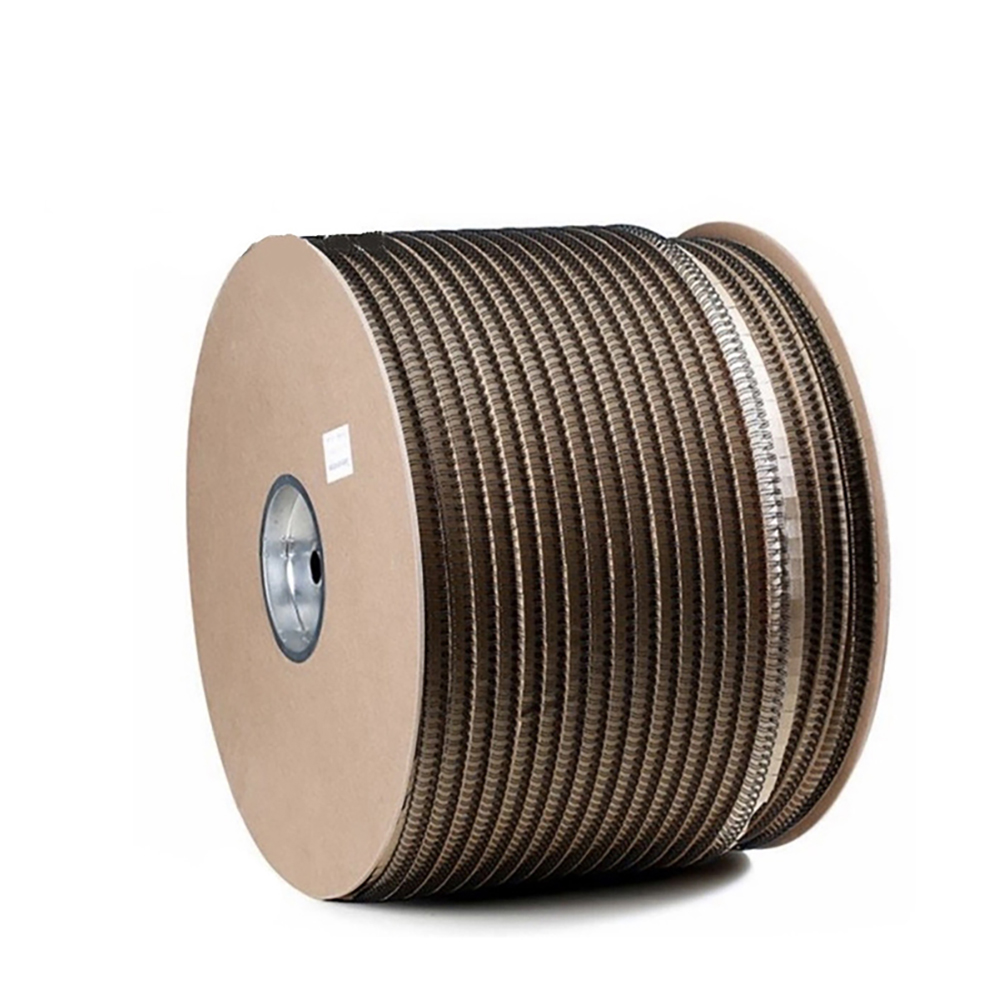

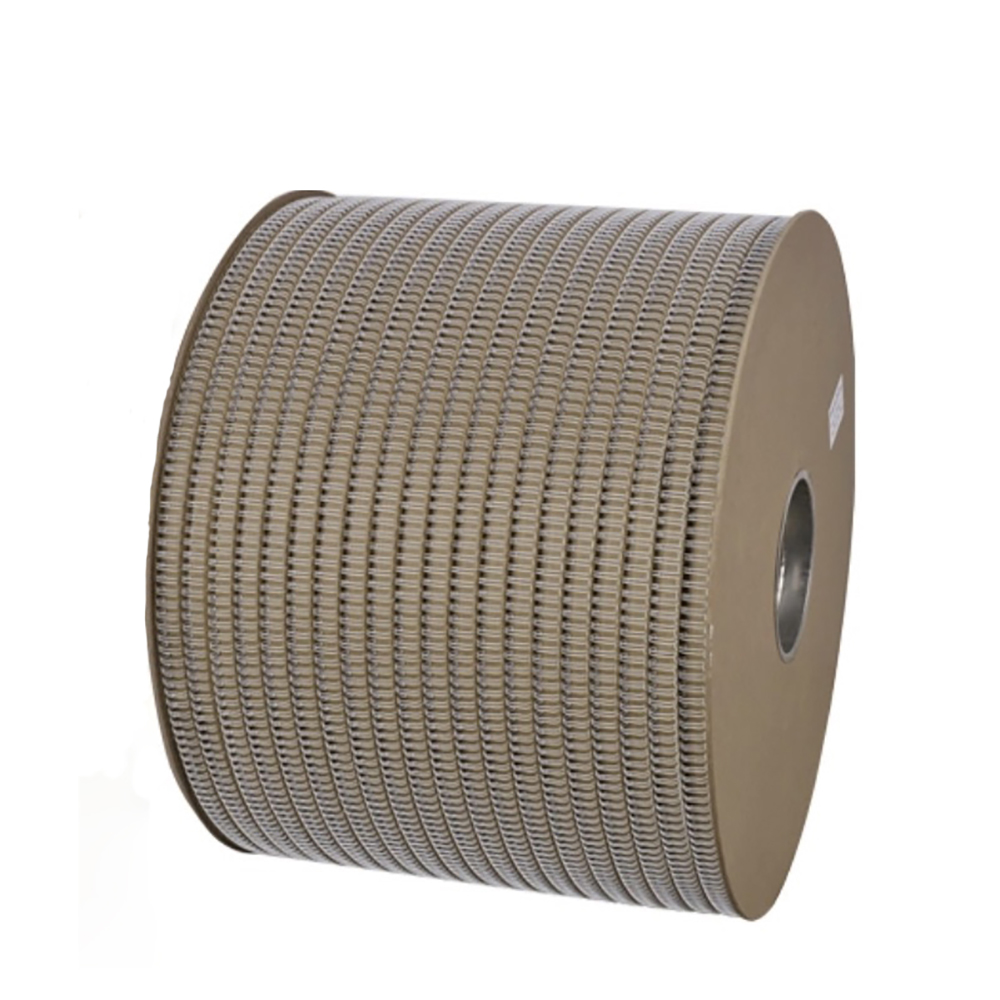

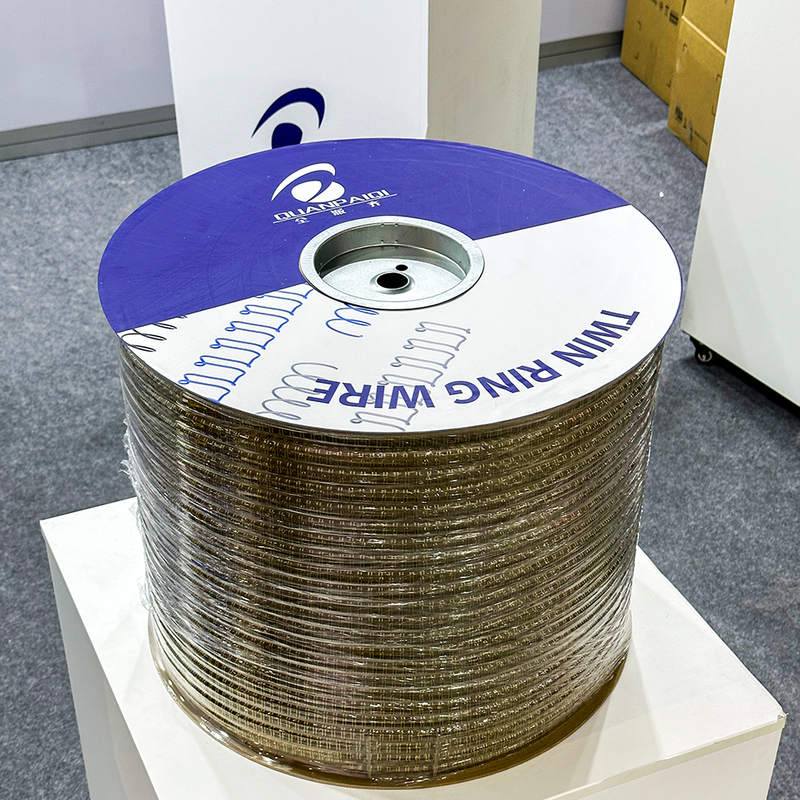

Our Double Loop Binding Wire (Spool) works perfectly with Double Wire Binding Machines. The number of loops for each can be customized.

Pitch	Size		Packing	Packing Thickness
Pitch	Inches	MM	Loops/Spool	MM
3:1	3/16''	4.8	118000	3.5
	1/4''	6.4	80000	4.0
	5/16''	7.9	58000	5.6
	3/8''	9.5	42000	7.0
	7/16''	11.1	28000	9.5
	1/2''	12.7	24000	11.0
	9/16''	14.3	18000	12.7
	5/8''	16.0	15000	13.2

2:1	3/8''	9.5	28000	7.0
	7/16''	11.1	19000	9.5
	1/2''	12.7	16000	11.0
	9/16''	14.3	12000	12.7
	5/8''	16.0	10000	13.2
	3/4''	19.0	7000	15.0
	7/8''	22.2	4500	19.0
	1''	25.4	3600	21.0
	1-1/8''	28.5	3400	22.5
	1-1/4''	31.8	2000	24.0

Safety Coil Technology

We offer 4 opptions to choose from:

1. ending with glue

2. 90°ends-bending

3. 180°ends-bending

4. 270°ends-bending

Advantages

1. We use galvanized iron wire, which has strong oxidation resistance.
2. Smooth surface, work perfectly works for high-speed processing.
3. Thin polymer coating combines extreme formability with excellent adhesion.
4. Extremely malleable, continuously steady tensile strength for failure-free operation.
5. The environmentally friendly coating has exceptionally high resistance to wear and corrosion.
